Upper layer protocol

General structure of a message

Messages are sent via TCP.

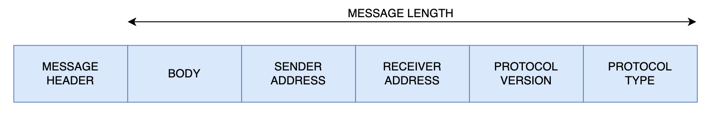

Message Layout

A message consists of a header and a body and some additional related data fields.

The message header has a fixed length of 12 bytes, and contains the following fields:

Message Length.

Field	Length (bytes)	Description
Magic Number	1st - 4th	Static value. Always 0x65, 0x70, 0x6f, 0x73
Message Length	5th - 8th	Consist of: 1 . Body length. 2 . Sender Address (1 byte). 3 . Receiver Address (1 byte). 4 . Protocol Version (1 byte). 5 . Protocol Type (1 byte).
Sender Address	9th	Reserved for future use.
Receiver Address	10th	Reserved for future use.
Protocol Version	11th	Protocol version used.
Protocol Type	12th	Protocol type used.



The following messages are part of this protocol:

1. AUTHORIZATION_REQUEST (0310)

2. AUTHORIZATION_RESPONSE (0311)

3. TRANSACTION_RESULT (0320)

4. TRANSACTION_COMPLETE (03FF)

5. TRANSACTION_CANCEL (0301)

6. PRE_AUTH_OPERATION_REQUEST (0381)

7. PRINT_REQUEST (0501)

8. PRINT_COMMAND (0500)

9. ABORT (FFFF)

Message Metadata

The following format is used to describe the message definitions from the CM.com IPP Payments perspective:

Tag Name	Tag Code	Required
<TLV tag name>	<TLV tag>	M/O/C

Message format from CM.com IPP Payments Platform perspective

The first column describes the TLV tag name. When the tag name is preceded by a > (greater-than symbol), the tag is part of the constructed tag at the level above. When the tag name is preceded by >> (double greater-than symbols), the tag is a child of the previously constructed tag at the higher level. The second column contains the code for the TLV tag used for this field. The third column describes whether the tag is Mandatory, Optional or Conditional. When a tag is conditional, the conditions are listed after the message definition.

The following format is used to describe the message definitions from the payment terminal perspective:

Tag Name	Tag Code	EMV	Swipe
<TLV tag name>	<TLV tag>	M/O/C/-	M/O/C/-

Message format from Payment Terminal Perspective

The first column describes the TLV tag name. When the tag name is preceded by a > (greater than character) the tag is part of the constructed tag on the level above it. The second column contains the code for the TLV tag used for this field. The third column indicates whether the tag is Mandatory, Optional, Conditional or - Not applicable for EMV transactions. The fourth column specifies whether the tag is Mandatory, Optional, Conditional or - Not applicable for Magstripe transactions.

All outgoing messages (AUTHORIZATION_REQUEST, TRANSACTION_RESULT, TRANSACTION_CANCEL, PRINT_REQUEST and PRE_AUTH_OPERATION_REQUEST) need to include a METADATA container tag, directly adjacent to the header.

The payment terminal identifying tags [Terminal model, Terminal brand and Interface Device (IFD) Serial Number] are values that are determined with CM.com IPP Payments Platform during onboarding.

The message will be formatted as follows: HEADER + METADATA (0x7FE000) + CONTENT (0x7FE100).

Tag Name	Tag	M/O/C
Metadata	7FE000	M
> Application Dialog Variant (02)	5FE012	M
> Application Protocol Version	7FE010	M
>> Application Protocol Major Version (00 04)	5FE010	M
>> Application Protocol Minor Version (00 03)	5FE011	M
> Application Identification	7FE012	M
>> Terminal brand	5FE101	M
>> Terminal model	5FE102	M
>> Interface Device (IFD) Serial Number	9F1E	M
>> Terminal application version	5FE130	M
>> Terminal application build date	5FE131	O
>> SPHS version	5FE132	C1
>> SDK version	5FE133	C1
>> ROM version	5FE134	C1
>> OS version	5FE135	C1
Content	7FE100	M
> Normal message content	-	M

Metadata

Note

• C1 - Mandatory only for CM Terminals.

AUTHORIZATION_REQUEST (0310)

The AuthorizationRequest combines all the information needed to connect the device to the CM.com IPP Payments Platform (this information will be used to validate if that the terminal is a registered terminal) and all the information needed to start a payment.

This section contains a set of tags, indicating whether each tag is mandatory, conditional or optional from a business perspective.

Tag Name	Tag	EMV	Swipe
Command identifier	5FE000	M	M
Terminal key serial number	5FE310	M	M
Terminal Type	9F35	M	M
Terminal Capabilities	9F33	M	M
Additional Terminal Capabilities	9F40	M	M
Cardholder Verification Method (CVM) List	8E	M	-
CVM Results	9F34	M	-
Terminal Verification Results (TVR)	95	M	O
Application Cryptogram	9F26	M	-
Cryptogram Information Data	9F27	M	-
Issuer Application Data	9F10	M	-
Unpredictable Number	9F37	M	-
Application Interchange Profile	82	M	-
Dedicated File (DF) Name	84	M	-
Application Version Number – terminal	9F09	M	-
Point of service entry mode	9F39	M	M
Transaction status information	9B	O	-
EMV Transaction type	9C	M	-
Terminal country code	9F1A	M	-
Transaction date	9A	M	M
Transaction time	9F21	M	M
Terminal SCA support	5FE108	M	-
Transaction Sequence Counter	9F41	M	-
CM Transaction Type	5FE303	M	M
Amount Entry	7FE320	M	M
> Amount display string	5FE321	M	M
> Transaction Currency Exponent	5F36	M	M
> Transaction Currency Code	5F2A	M	M
> Amount, Authorized (Binary)	81	M	M
> Amount, Gratuity Authorised Amount	5FE34C	C4	C4
Encrypted cardholder data	5FE312	M	M
> PAN	5A	M	-
> Track 2 Equivalent Data	57	M	-
> TRACK2DATA	5FE313	-	M
> Application Effective Date	5F25	C2	-
> Application Expiration Date	5F24	C2	-
> PAN Sequence Number	5F34	C2	-
> Service Code	5F30	C2	-
AID entry	7FE306	M	-
> Application identifier (AID)	4F	M	-
> Application label	50	M	-
> Application preferred name	9F12	C2	-
> Issuer Code Table Index	9F11	C2	-
> Application priority indicator	87	C2	-
> Language preference	5F2D	C2	-
> Application Selection Registered Proprietary Data	9F0A	C2	-
> Issuer Identification Number Extended	9F0C	C2	-
> Issuer Identification Number	42	C2	-
Transaction identifier	5FE300	C1	C1
Application Identifier (AID) – terminal	9F06	C6	-
Application Transaction Counter (ATC)	9F36	C2	-
Application usage control	9F07	C2	-
Form factor indicator	9F6E	C2	-
Issuer country code	5F28	C2	-
Transaction category code	9F53	O	-
Issuer action code – Default	9F0D	C2	-
Encrypted PIN block	5FE311	C5	C5
Original reference STAN	5FE306	C3	C3
Original reference date	5FE307	C3	C3
EMV PIN try counter	9F17	C2	C2
Merchant order reference	5FE341	O	O
PIN length	5FE315	O	O
Amount authorized numeric	9F02	O	-
Cardholder data length	5FE346	O	O

AuthorizationRequest.

Note

• C1 - Mandatory in the cloud flow and must also be included in transactions where multiple AUTHORIZATION_REQUESTs are sent, such as in SCA flows or PIN retry scenarios Multiple Authorization Request.

• C2 - Present if it is present on the card.

• C3 - present if the tag CM Transaction Type 5FE303 CM Payment Transaction Types is Refund or PRE_AUTH_OPERATION_REQUEST (0381).

• C4 - present if being onboarded to use the feature tipping.

• C5 - Present if CVM is Online PIN.

• C6 - If tag 4F is not available then tag 9F06 shall be present.

• Remarks

  • For the PURCHASE flow, the following transaction type tags must be set: EMV Transaction Type (9C) = 00 details here: EMV Transaction Types, and CM Transaction Type (5FE303) = 0x0001 details here: CM Payment Transaction Types.

  • For the MAT flow, the following transaction type tags must be set: EMV Transaction Type (9C) = 00 details here: EMV Transaction Types, and CM Transaction Type (5FE303) = 0x0002 details here: CM Payment Transaction Types.

  • For the REFUND flow, the following transaction type tags must be set: EMV Transaction Type (9C) = 20 details here: EMV Transaction Types, and CM Transaction Type (5FE303) = 0x0004 details here: CM Payment Transaction Types.

  • For the PRE-AUTH flow, the following transaction type tags must be set: EMV Transaction Type (9C) = 00 details here: EMV Transaction Types, and CM Transaction Type (5FE303) = 0x0005 details here: CM Payment Transaction Types.

  • Terminal SCA support possible values for the tag TERMINAL_SCA_SUPPORT 5fe108 details here: Multiple Authorization Request

  • The terminal time is now assessed and compared to the store’s time. If the deviation is significant, the platform will terminate the transaction. In such cases, the abort message will include the new result code: INCORRECT TIME (0x0F03).

Responses
AUTHORIZATION_RESPONSE
ABORT

Possible responses to the AuthorizationRequest

AUTHORIZATION_RESPONSE (0311)

The AuthorizationResponse, among other data can include issuer scripts that the terminal must forward to the card, so the card can process them and generate the second AC that contains the result of that process. This could happen if the card has been inserted into the terminal and an ICC transaction was performed.\

The result of handling such action need to be sent in the subsequent TRANSACTION_RESULT (0320) message.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Command result code	5FE001	M
Transaction identifier	5FE300	M
Authorization Response Code	8A	M
Gateway Data	7FE340	O
> STAN	5FE34A	C2
Authorization Code	89	C1
Acquirer data	5FE33A	O
Pre Auth Valid Date	5FEF01	C3
Pre Auth Valid Time	5FEF02	C3
Issuer Authentication Data	91	C4
Issuer Script Template 1	71	C4
Issuer Script Template 2	72	C4

AuthorizationResponse.

Note

• C1 -Present if the data being made available by the financial institutions in the payment chain.

• C2 - Present if available in the CM IPP Payments Platform.

• C3 -Present only for the Pre-Authorization.

• C4 - Present for EMV transactions and required by issuer.

• Remarks

  • If the result code tag 5FE001 indicates PIN_INCORRECT_RETRY [0301], SCA_ADDITION_REQUIRED [0x030D] or CONTACT_CHIP_REQUIRED [0x030E], then an additional AuthorizationRequest must be performed with the same transaction identifier or a TransactionCancel with the transaction identifier.

PRE_AUTH_OPERATION_REQUEST (0381)

A pre-authorization is a transaction in which a specific amount is temporarily reserved on the customer’s account balance without the payment being processed immediately.

This amount is reserved to ensure that funds are available to cover the cost of a future transaction, commonly used for hotel reservations, car rentals, or EV charging / Fuel dispensing.

Once the service or delivery of goods is completed, the pre-authorization can either: be updated by increasing the pre-authorization amount, or be finalized by fully or partially capturing the pre-authorized amount or canceling it.

The validity period of a pre-authorization depends on the policies of the card brand.

For the pre-authorization operation, there are distinct scenarios: Finalize a Pre-Authorization (which includes Confirmation and Cancellation) and Update a Pre-Authorization.

For comprehensive information regarding these scenarios, please click here: PRE-AUTH CANCELLATION / CONFIRMATION / UPDATE

There are exceptions based on the processor and acquirer requirements for using the pre-authorization functionality. Please consult with the CM Product Team during onboarding to determine the best setup, as well as the rules and details for its usage in your specific context.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
CM Transaction Type	5FE303	M
Original stan reference	5FE306	M
Original date reference	5FE307	M
Amount entry	7FE320	C1
> Amount display string	5FE321	C1
> Transaction Currency Exponent	5F36	C1
> Transaction Currency Code	5F2A	C1
> Amount, Authorized (Binary)	81	C1
Merchant reference order	5FE341	O

Pre-Auth-Operation.

Note

• C1 - Present if it is a CONFIRM_PRE_AUTH (0x0006) or UPDATE_PRE_AUTH (0x0008); optional for CANCEL_PRE_AUTH.

• Remarks

  • 5FE303 - CM Transaction type CM Payment Transaction Types should be used only for CONFIRM_PRE_AUTH (0x0006), CANCEL_PRE_AUTH (0x0007) or UPDATE_PRE_AUTH (0x0008).

  • For UPDATE_PRE_AUTH amount has no restrictions.

  • For each pre-authorization operation request, the validity period will be checked. If the request refers to a transaction whose validity period has expired, the result code TRANSACTION_EXPIRED (0x0F02) will be returned.

Responses
ABORT
TRANSACTION COMPLETE

Possible responses to Pre-Auth-Operation.

Transaction Completion Dialog

The dialog for the completion of the transaction consists of two messages TRANSACTION_RESULT (0320) and TRANSACTION_COMPLETE (03FF).

TRANSACTION_RESULT (0320)

After all parties—the card, terminal, CM.com IPP Payments Platform, processor/acquirer, and issuer—have successfully authorized the financial transaction, the terminal sends a TransactionResult to the CM.com IPP Payments Platform to complete the transaction. It is important to mention that the final decision on the result code of the message lies with the card. A transaction is immutable upon the receipt of the TransactionResult by the CM.com IPP Payments Platform.

Tag Name	Tag	EMV	Swipe
Command identifier	5FE000	M	M
Command result code	5FE001	M	M
Transaction identifier	5FE300	M	M
Amount entry	7FE320	M	M
> Amount display string	5FE321	M	M
> Transaction Currency Exponent	5F36	M	M
> Transaction Currency Code	5F2A	M	M
> Amount, Authorized (Binary)	81	M	M
> Amount, Gratuity Authorised Amount	5FE34C	C1	C1
Terminal Verification Results (TVR)	95	M	O
Application Cryptogram	9F26	M	-
Cryptogram Information Data	9F27	M	-
Transaction Status Information (TSI)	9B	O	-

TransactionResult

Note

• C1 - Present if the transaction type, card and terminal capabilities, and the specific processes performed during the transaction are provided.

DELAYED TRANSACTION RESULT

The Processor Style Protocol supports what is called a “delayed transaction result.” This feature allows the customer up to 24 hours between the messages AUTHORIZATION_REQUEST (0310) and TRANSACTION_RESULT (0320) to complete the transaction. Within this time frame, the messages are still considered part of the same transaction. If more than 24 hours elapse between the AUTHORIZATION_RESPONSE (0311) and the TRANSACTION_RESULT (0320) sent by the terminal, the transaction is aborted, sending an ABORT (FFFF) message with the result code TRANSACTION_EXPIRED (0x0f02) to the terminal.

This functionality is of particular interest to integrators whose solutions require waiting time between a successful AuthorizationResponse and the dispatch of goods or rendering of services. Additionally, it allows for recovery in case of connection drops.

To use the “delayed transaction result” functionality, please consult with the CM Product Team during onboarding to determine the best setup for the rules around its usage, based on the specific context.

Responses
TRANSACTION COMPLETE
ABORT

Possible Responses to a TransactionResult.

TRANSACTION_COMPLETE (03FF)

The TransactionComplete message signals the final state and result of the transaction.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Command result code	5FE001	M
Transaction identifier	5FE300	M
Gateway Data	7FE340	O
> STAN	5FE34A	C1

TransactionComplete (The tags returned are identical, independent of it being an EMV or swipe transaction).

Note

• C1 -Present if, when the CM Transaction Type 5FE303 CM Payment Transaction Types of the AuthorizationRequest is PRE_AUTH_OPERATION_REQUEST (0381), and it is the value that should be used in the STAN Original Reference 5FE306 in the PRE_AUTH_OPERATION_REQUEST (0381) message.

General Messages

General messages can be sent regardless of transaction phase. The Command result codes are described in the glossary: Command Result Codes

TRANSACTION_CANCEL (0301)

With the TRANSACTION_CANCEL message the terminal can request the cancellation of a transaction that is still in progress. It must be sent before the transaction point of no return (immutable state).

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Command result code	5FE001	M
EMV transaction date	9A	M
EMV transaction time	9F21	M
Amount entry	7FE320	M
>Amount display string	5FE321	M
>Transaction Currency Exponent	5F36	M
>Transaction Currency Code	5F2A	M
>Amount, Authorized (Binary)	81	M
Transaction identifier	5FE300	C1

TransactionCancel

Note

• C1 - Mandatory if it is known. This tag can be received via two options:

  • It will be in the authorization response message received for the non cloud flow.

  • It is received in the initial transaction information for the cloud flow during the polling.

Possible Response
TRANSACTION COMPLETE
ABORT

Possible Responses to TransactionCancel.

ABORT (FFFF)

In the event of an error, the CM.com IPP Payments Platform may send an ABORT message instead of the expected response message (e.g., AUTHORIZATION_RESPONSE, TRANSACTION_COMPLETE). The ABORT message can include various result codes (see Appendix A.2), but those relevant to the flow of this type of message are:

• SERVER_BUSY (0x0f01) when a cancel is sent while the transaction is still pending an answer from the financial institutions in the payment chain. An abort message will be sent with the code SERVER_BUSY.

• TRANSACTION_EXPIRED (0x0f02) when a TRANSACTION_CANCEL (0301) is sent too late for the transaction to be reversed.

• SYSTEM_ERROR (0xffff) when an unexpected error occurs while handling the request.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Command result code	5FE001	M

Abort.

Printing Messages

When receipt printing is supported by the device, using the printing dialog is strongly recommended. If an integrator decides to make use of the printing dialog, CM.com IPP Payments Platform strongly advises to make the printing messages part of the same session used by the terminal to execute the transaction.

CM.com IPP Payments Platform provides the PrintCommand message to integrators for each PrintRequest received.

The message contains all the tags and their values that are necessary to be printed on a receipt by the card.

In addition, the CM.com IPP Payments Platform provides integrators with formatted receipts through the constructed tag FORMATTED_RECEIPTS - 7fe506, which contains the sub-tag RECEIPT_FORMATTED_LINES - 7fe505 twice, within the PrintCommand message.

The first instance of the sub-tag represents the merchant receipt, while the second represents the cardholder receipt. This structure allows integrators to easily differentiate between receipts intended for the merchant and those for the cardholder. Each RECEIPT_FORMATTED_LINES - 7fe505 contains multiple RECEIPT_FORMATTED_LINE - 5fe505 tags. These multiple lines should be read in strict order to ensure that the header, content, and footer are in the correct sequence. This ordering is essential for properly formatted receipt output, with each section displayed in its intended position.

• Merchant Receipt: is the first sub-tag RECEIPT_FORMATTED_LINES 7fe505. This receipt includes all necessary data elements required to ensure compliance.

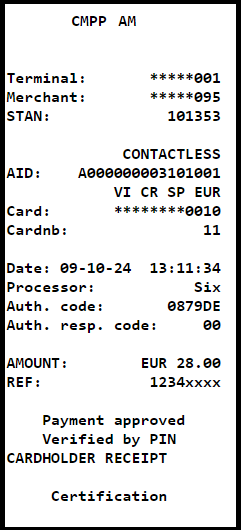

• Cardholder Receipt: is the second sub-tag RECEIPT_FORMATTED_LINES 7fe505. In specific scenarios, such as during a refund, the formatted cardholder receipt includes a designated area for the cardholder’s signature, as well as an indication that a signature is required. (The space is also included within the formatted lines).

Terminals must use the Transaction Options tag 5FE304 (instead of Transaction Type) to determine the receipt generation logic. The tag value controls signature line placement and refund line printing as follows:

• Value 0x00 (NONE): No signature line is required.

• Value 0x02 (REQUEST_SIGNATURE): A signature line is required, and specific refund line printing rules apply.

Receipt Generation Rules Based on Transaction Options (5FE304)

Integrators using the print message to generate receipts must implement the following logic based on the 5FE304 value:

For Purchase Transactions:

• If CVM performed is Signature, the CM.com IPP Payments Platform will send 5FE304 = 0x02.

• When 5FE304 = 0x02, terminals must print the refund line in the Merchant Receipt.

For Refund Transactions:

• The CM.com IPP Payments Platform will send 5FE304 = 0x02 for all refunds.

• When 5FE304 = 0x02, terminals must print the refund line in the Cardholder Receipt.

• The merchant is required to print and sign the cardholder’s receipt for refunds.

For integrators using CM formatted receipts, the signature line and refund line are already included in the appropriate receipt when the Transaction Options tag 5FE304 has a value of 0x02.

In all cases where a signature is required, integrators must print the receipt to comply with card scheme regulations.

Scenarios

CHIP / CONTACTLESS

• The CVM (Cardholder Verification Method) result requests Signature.

• Example: CVM Result = 1E0000 → Signature required.

MAGSTRIPE

• The transaction was performed using the magnetic stripe.

• The Service Code does not indicate that a PIN is required.

• Example: Service Code = 201 → Signature required.

This setup ensures that all necessary receipt data is consistently available to meet the standards. Integrators have the flexibility of creating their receipts using the tags shown in the PrintCommand or using directly the formatted receipts tag with the receipt already created.

PRINT_REQUEST (0501)

To request for a specific receipt, the transaction identifier must be added to the PRINT_REQUEST. If the field Transaction identifier is omitted, the last receipt of the last transaction executed by CM.com IPP Payments Platform is returned. It is recommended to always send the transaction identifier, even if it is the last transaction.

If the terminal fails to connect during the last transaction attempt, the latest transaction recorded on the CM.com IPP Payments Platform will be from before this attempt.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Transaction identifier	5FE300	O

PrintRequest

Possible Response
PRINT_COMMAND
ABORT

Possible Responses to a PrintRequest.

PRINT_COMMAND (0500)

Following the PRINT_REQUEST the CM.com IPP Payments Platform can send the receipt(s) to the terminal. The terminal can use this information to facilitate the receipt.

1. Example Formatted Receipt.

The PRINT_COMMAND contains all the necessary data for generating receipts, including the required tags and their corresponding values. This information can be used by the terminal to either print a physical receipt or display the relevant details.

It is strongly recommended to use this message for the creation of the receipt. The table below lists the tags to be included for the creation of the receipt.

Tag Name	Tag	M/O/C
Command identifier	5FE000	M
Authorisation code	89	M
Language preference	5F2D	M
Merchant name and location	9F4E	M
Receipt footer	5FE501	M
Terminal identification	9F1C	M
Merchant identifier	9F16	M
Receipt Merchant Language	5FE509	M
Transaction options	5FE304	M
Merchant order reference	5FE341	M
App preferred name	9F12	M
PAN masked	5FE314	M
Point of service entry mode	9F39	M
Authorisation response code	8A	M
Transaction date	9A	M
Transaction time	9F21	M
Transaction identifier	5FE300	M
CM transaction type	5FE303	M
Transaction status	5FE305	M
Processor name	5FE333	M
Cvm results	9F34	C1
Terminal Verification Results	95	C1
Transaction sequence counter	9f41	M
Amount entry	7FE320	M
> Amount display string	5FE321	M
> Transaction currency code	5F2A	M
> Transaction currency exp	5F36	M
> Amount authorised binary	81	M
Transaction succeeded	5fe30a	M
Formatted receipts	7fe506	M
> Receipt formatted lines	7fe505	M
>> Receipt formatted line	5fe505	M
Receipt duplicated	5FE502	M
AID card	4F	C1
PAN sequence number	5F34	C1
Card sequence number	5FE309	C1
Issuer Identification Number	42	C2

PrintCommand

Note

• C1 - Present if it was in the AUTHORIZATION_REQUEST.

• C2 - Present if the transaction was done via magnetic stripe.

• Special notes for the header and footer:

  • The receipt header must always include the merchant name (or merchant ‘doing business as name’), city, state/province and country.

  • Receipt header length: The maximum accepted is 64 characters.

  • Receipt footer length: The maximum accepted is 64 characters.

• Remarks

  • The Transaction status 5FE305 can take the following values: Transaction Status Values.

  • Transaction Options 5FE304 values Transaction Options.
