Multiple Authorization Request

In most transactions, the terminal will only send an AuthorizationRequest to the CM.com IPP Payments Platform once, but there are exceptions where the terminal must send an additional authorization request to successfully complete the transaction.
The following four situations require an additional AuthorizationRequest:

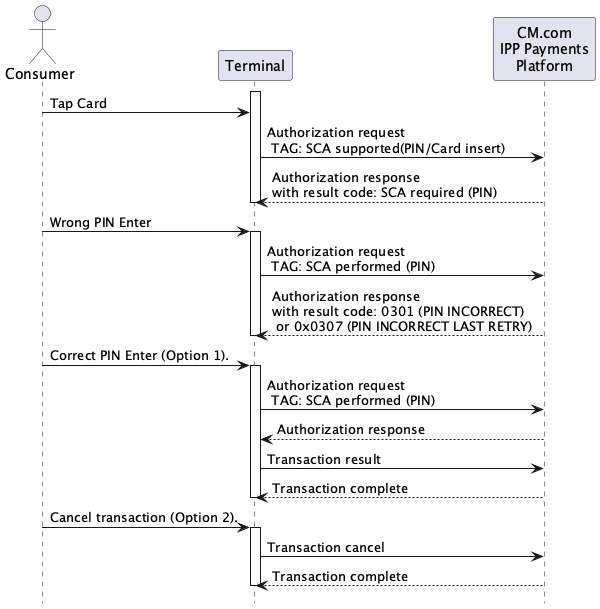

• Online PIN is requested after entering wrong PIN

• Online PIN is requested, last attempt, after entering wrong PIN

• Online PIN is requested after a tap (SCA-PIN)

• A card insert is requested after a tap (SCA-CARD INSERT)

Value	Meaning	Description
0	NOT_SUPPORTED	No SCA methods supported by the terminal.
1	SCA_PIN_SUPPORTED	Terminal supports SCA method online pin.
2	SCA_PIN_PERFORMED	SCA method online pin performed.
3	SCA_PIN_INSERT_SUPPORTED	Terminal supports SCA method online pin and support SCA method insert.
4	SCA_CARD_INSERT_PERFORMED	SCA methods card insert performed.
5	SCA_INSERT_SUPPORTED	Terminal supports SCA methods online pin.

Terminal SCA support values for the tag [5fe108 TERMINAL_SCA_SUPPORT] are:

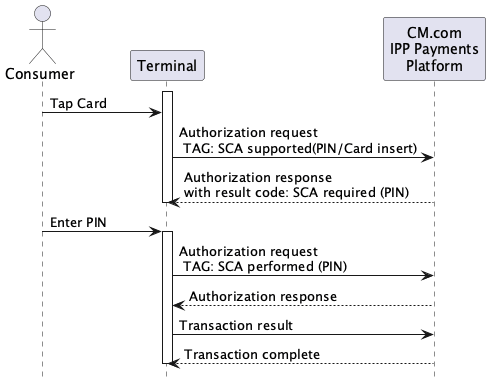

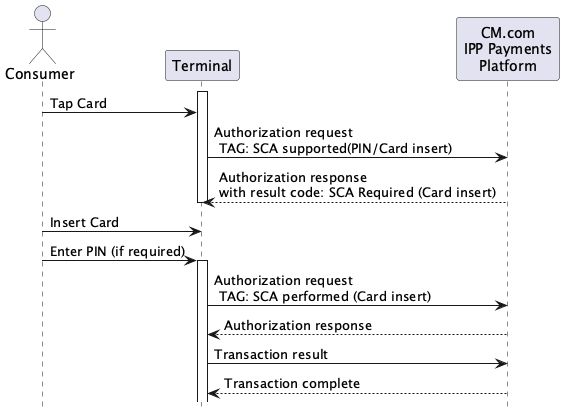

Below two figures of SCA with PIN and with card insert. When the CM.com IPP Payments Platform indicates to do SCA with card insert, then the terminal needs to present a message to indicate that the card needs to be inserted. After the card is inserted, the terminal will perform a (new) transaction with the inserted card and can request PIN if needed. A new AuthorizationRequest must be submitted with all required data elements, including the transaction identifier as received from the CM.com IPP Payments Platform. The same card used during the initial authorization must be used when a SCA card insert is required.

Note

In all 4 cases identified above, the tags TRANSACTION_IDENTIFIER 5FE300, TRANSACTION_DATE 9A and TRANSACTION_TIME 9F21 are mandatory as this will help to identify the original AuthorizationRequest. The authorization result codes that indicate these cases are summarized in the table below.

Tag	Tag Name
0x030D	SCA-PIN
0x030E	SCA-CARD INSERT
0x0307	PIN INCORRECT

SCA Result Codes
