Interactive messages

Interactive messages give users structured ways to respond: picking from a list, tapping a button or completing a form. They can only be sent within the customer service window. To send interactive content outside the window, use an interactive template.

Type	`interactive.type`	Use it to…
List message	`list`	Let the user choose from a menu of up to 10 options.
Reply button message	`button`	Offer up to 3 quick replies.
CTA URL button message	`button`	Show a single button that opens a URL, instead of a long raw link.
Location request message	`location_request_message`	Ask the user to share their location.
Flows message	`flow`	Open a WhatsApp Flow: forms and multi-screen journeys.
Call permission request	`call_permission_request`	Ask the user for permission to call them on WhatsApp.
Media carousel message	`carousel`	Show 2–10 horizontally scrollable cards with media and buttons.

To ask a user for their phone number, see Request phone number from users. For product-related interactive messages, see Catalogue & Product messages.

The user's response is delivered to your MO webhook. See Interactive responses.

Message structure

Add an interactive item to richContent.conversation. Most interactive types share the following structure:

Field	Description
`type`	The interactive type. See the table above.
`header`	Optional header. Supported header types depend on the interactive type.
`body.text`	Message text.
`footer.text`	Optional footer text.
`action`	The interactive element: list sections, buttons or other parameters, depending on the type.

Header types

Interactive type	Supported header types
List message	`text` (max. 60 characters)
Reply buttons	`text`, `image`, `video`, `document`
CTA URL button	`text`, `image`, `video`, `document`
Flows message	`text`

For a media header, set header.type to the media type and add a media object (mediaName, mediaUri, mimeType). Audio headers are not supported.

Complete request

The examples on this page show the interactive item only. Place it in a request as follows:

Complete request
{
  "messages": {
    "authentication": {
      "productToken": "YOUR_PRODUCT_TOKEN"
    },
    "msg": [
      {
        "from": "00316098765432",
        "to": [
          { "number": "00316012345678" }
        ],
        "body": {
          "type": "auto",
          "content": "Fallback text"
        },
        "allowedChannels": ["WhatsApp"],
        "richContent": {
          "conversation": [
            {
              "interactive": {
                "type": "button",
                "body": {
                  "text": "Would you like to receive order updates on WhatsApp?"
                },
                "action": {
                  "buttons": [
                    { "type": "reply", "reply": { "id": "updates-yes", "title": "Yes, please" } },
                    { "type": "reply", "reply": { "id": "updates-no", "title": "No, thanks" } }
                  ]
                }
              }
            }
          ]
        }
      }
    ]
  }
}

List message

A list message shows a button that opens a menu. The user selects one row.

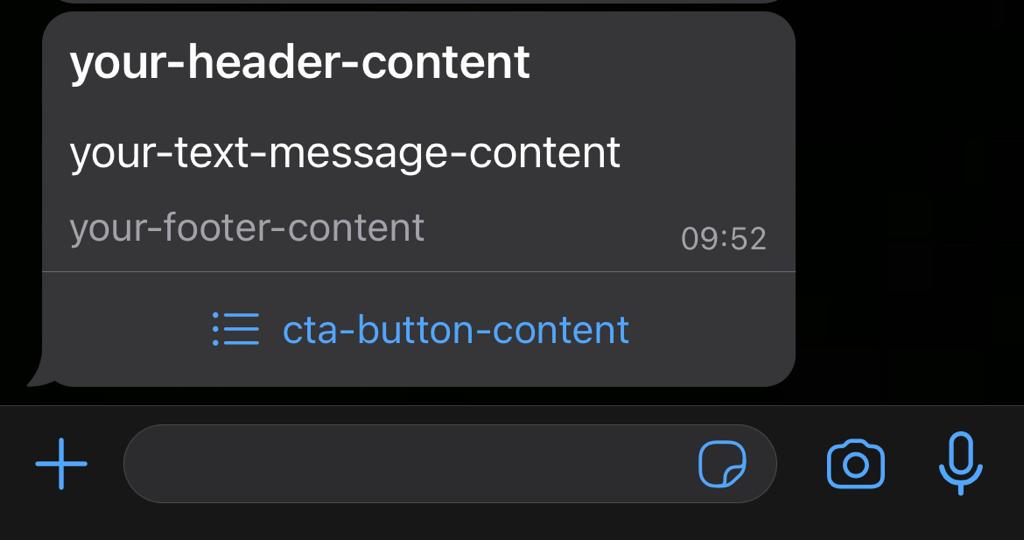

Interactive list message

Field	Required	Limit	Description
`header.text`	No	60 characters	Header text. Only `text` headers are supported.
`body.text`	Yes		Message text.
`footer.text`	No		Footer text.
`action.button`	Yes		Label of the button that opens the list.
`action.sections[].title`	Yes	24 characters	Section title.
`action.sections[].rows[].id`	Yes	200 characters	Unique row ID. Returned in the user's reply.
`action.sections[].rows[].title`	Yes	24 characters	Row title.
`action.sections[].rows[].description`	No	72 characters	Row description.

A list can contain up to 10 rows in total.

List message
{
  "interactive": {
    "type": "list",
    "header": {
      "type": "text",
      "text": "Our opening hours"
    },
    "body": {
      "text": "Which store would you like to visit?"
    },
    "footer": {
      "text": "CM.com"
    },
    "action": {
      "button": "Choose a store",
      "sections": [
        {
          "title": "North Brabant",
          "rows": [
            { "id": "store-breda", "title": "Breda", "description": "Konijnenberg 30" }
          ]
        },
        {
          "title": "North Holland",
          "rows": [
            { "id": "store-amsterdam", "title": "Amsterdam", "description": "City centre" }
          ]
        }
      ]
    }
  }
}

Reply button message

A reply button message shows up to 3 buttons. When the user taps a button, its id is returned in the reply.

Field	Required	Limit	Description
`header`	No		`text`, `image`, `video` or `document` header.
`body.text`	Yes		Message text.
`footer.text`	No		Footer text.
`action.buttons[].type`	Yes		`reply`
`action.buttons[].reply.id`	Yes	256 characters	Unique button ID. Returned in the user's reply.
`action.buttons[].reply.title`	Yes	20 characters	Button label. Must be unique within the message. No emoji or Markdown.

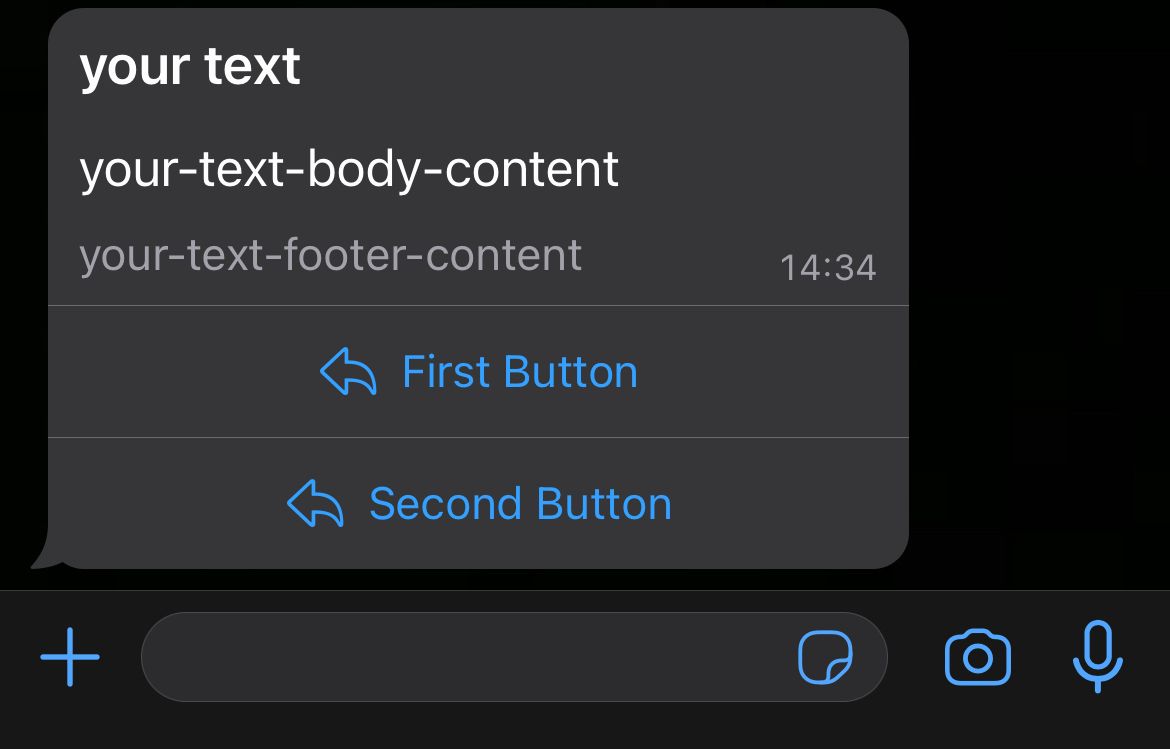

Text header
{
  "interactive": {
    "type": "button",
    "header": {
      "type": "text",
      "text": "Delivery update"
    },
    "body": {
      "text": "Your parcel is ready for delivery. When would you like to receive it?"
    },
    "footer": {
      "text": "Reply within 24 hours"
    },
    "action": {
      "buttons": [
        { "type": "reply", "reply": { "id": "delivery-today", "title": "Today" } },
        { "type": "reply", "reply": { "id": "delivery-tomorrow", "title": "Tomorrow" } }
      ]
    }
  }
}

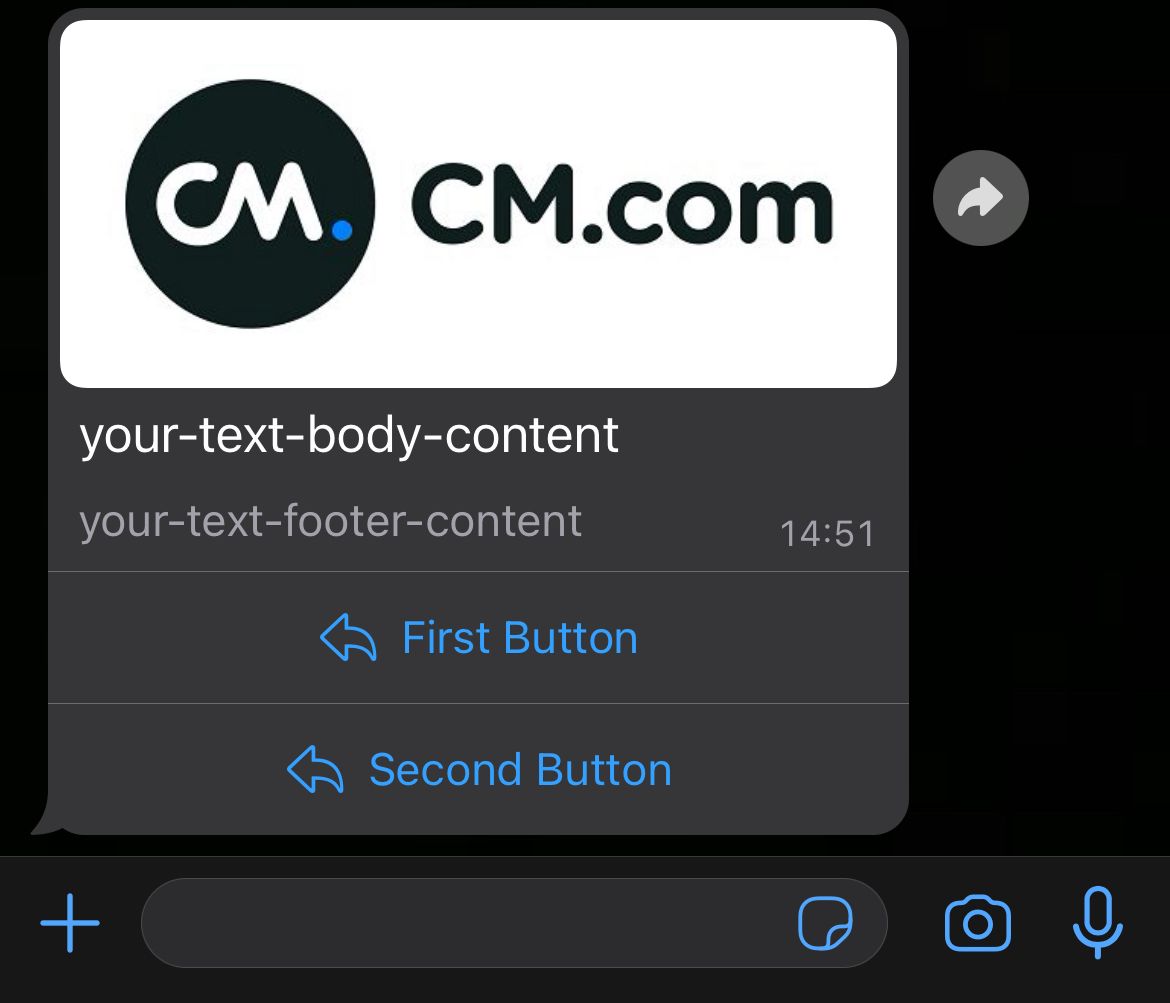

Image header
{
  "interactive": {
    "type": "button",
    "header": {
      "type": "image",
      "media": {
        "mediaName": "CM.com - Be part of it.",
        "mediaUri": "https://www.cm.com/cdn/web/blog/content/logo-cmcom.png",
        "mimeType": "image/png"
      }
    },
    "body": {
      "text": "Your parcel is ready for delivery. When would you like to receive it?"
    },
    "action": {
      "buttons": [
        { "type": "reply", "reply": { "id": "delivery-today", "title": "Today" } },
        { "type": "reply", "reply": { "id": "delivery-tomorrow", "title": "Tomorrow" } }
      ]
    }
  }
}

CTA URL button message

A call-to-action (CTA) URL button message shows a single button that opens a URL. Use it instead of a raw link, which users may be hesitant to tap.

Field	Required	Description
`header`	No	`text`, `image`, `video` or `document` header.
`body.text`	Yes	Message text.
`footer.text`	No	Footer text.
`action.buttons[].type`	Yes	`openurl`
`action.buttons[].id`	Yes	Unique button ID.
`action.buttons[].title`	Yes	Button label.
`action.buttons[].url`	Yes	URL opened when the user taps the button.

One button only

WhatsApp supports one URL button per message. If you supply more than one, only the first is sent.

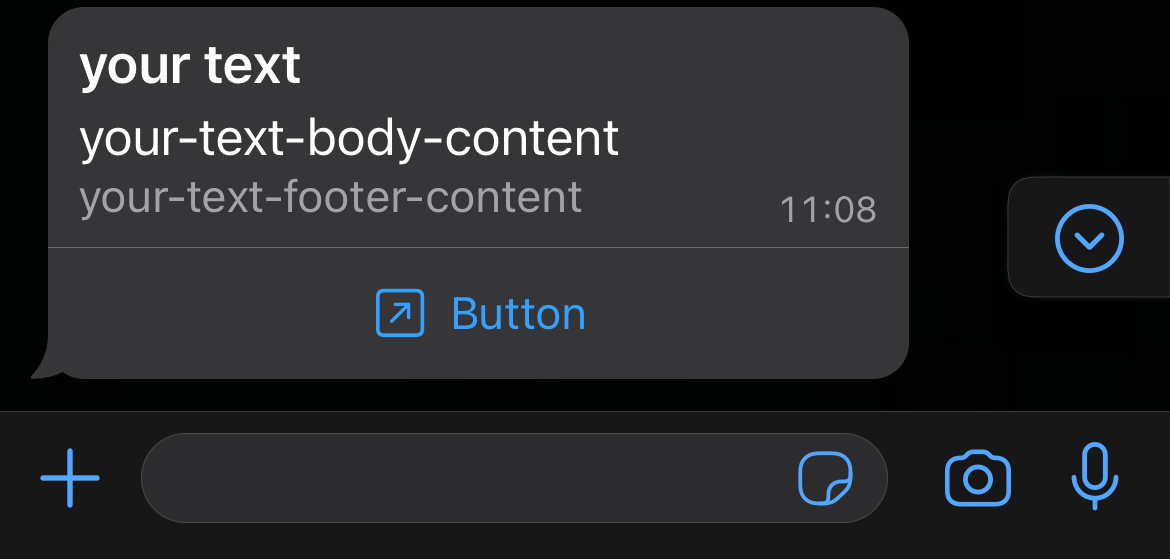

Text header
{
  "interactive": {
    "type": "button",
    "header": {
      "type": "text",
      "text": "Your invoice"
    },
    "body": {
      "text": "Your invoice for October is ready."
    },
    "footer": {
      "text": "CM.com"
    },
    "action": {
      "buttons": [
        {
          "type": "openurl",
          "id": "view-invoice",
          "title": "View invoice",
          "url": "https://www.example.com/invoices/2026-10"
        }
      ]
    }
  }
}

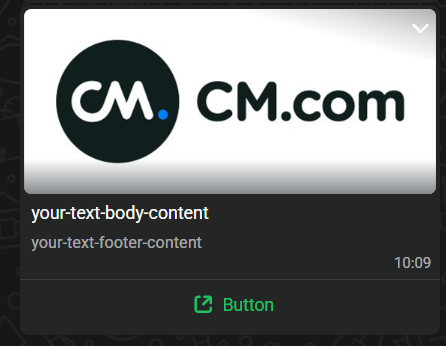

Image header
{
  "interactive": {
    "type": "button",
    "header": {
      "type": "image",
      "media": {
        "mediaName": "Invoice",
        "mediaUri": "https://www.example.com/images/invoice.png",
        "mimeType": "image/png"
      }
    },
    "body": {
      "text": "Your invoice for October is ready."
    },
    "action": {
      "buttons": [
        {
          "type": "openurl",
          "id": "view-invoice",
          "title": "View invoice",
          "url": "https://www.example.com/invoices/2026-10"
        }
      ]
    }
  }
}

Location request message

A location request message contains a Send location button. When the user taps it, WhatsApp opens a screen where they can share their location. The location is delivered to your MO webhook as a location message.

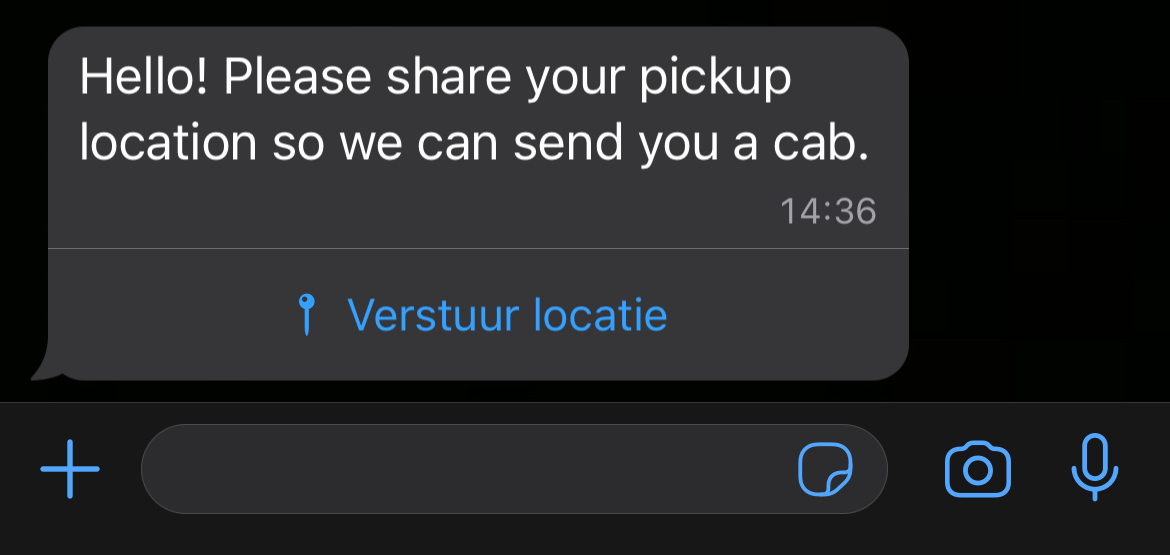

Location request message

Field	Required	Description
`body.text`	Yes	Message text.
`action.name`	Yes	`send_location`

Location request message
{
  "interactive": {
    "type": "location_request_message",
    "body": {
      "text": "Hello! Please share your pickup location so we can send you a cab."
    },
    "action": {
      "name": "send_location"
    }
  }
}

Flows message

A Flows message opens a WhatsApp Flow: a form or multi-screen journey you have built in WhatsApp Manager. The data the user submits is delivered to your MO webhook as a Flows reply.

Field	Required	Description
`header`	No	`text` header.
`body.text`	Yes	Message text.
`footer.text`	No	Footer text.
`action.name`	Yes	`flow`
`action.parameters.flow_message_version`	Yes	Must be `3`.
`action.parameters.flow_id`	Yes*	ID of the Flow. *Provide either `flow_id` or `flow_name`, not both.
`action.parameters.flow_name`	Yes*	Name of the Flow. *Provide either `flow_id` or `flow_name`, not both.
`action.parameters.flow_token`	No	Your own token. It is returned in the Flows reply so you can correlate the response.
`action.parameters.flow_cta`	Yes	Label of the button that opens the Flow.
`action.parameters.flow_action`	No	`navigate` or `data_exchange`.
`action.parameters.flow_action_payload`	No	For `navigate`: the first `screen` to show and optional initial `data`.

Flows message
{
  "interactive": {
    "type": "flow",
    "header": {
      "type": "text",
      "text": "Book an appointment"
    },
    "body": {
      "text": "Choose a date and time that suits you."
    },
    "footer": {
      "text": "CM.com"
    },
    "action": {
      "name": "flow",
      "parameters": {
        "flow_message_version": "3",
        "flow_id": "your-flow-id",
        "flow_token": "your-flow-token",
        "flow_cta": "Book now",
        "flow_action": "navigate",
        "flow_action_payload": {
          "screen": "YOUR_FIRST_SCREEN_ID",
          "data": {
            "optional-field": "optional-value"
          }
        }
      }
    }
  }
}

Call permission request message

Before you can call a WhatsApp user, you need their explicit permission. A call permission request asks the user to grant it, either temporarily or permanently. Only the user can grant or revoke permission. The user's response is delivered to your MO webhook as a call permission reply.

To request permission outside the customer service window, use a call permission request template.

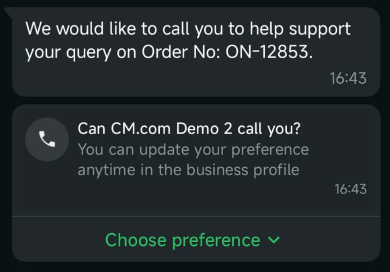

Example of interactive call permission request

Limits

Limit	Value
Temporary permission	Valid for 7 days (168 hours).
Permanent permission	Does not expire, but the user can revoke it.
Permission requests	Max. 1 per 24 hours and 2 per 7 days per user. Both limits reset after any connected call.
Connected calls	Max. 100 per business phone number per 24 hours.
Unanswered calls	After 2 consecutive unanswered calls, the user is asked to reconsider the permission. After 4, the permission is revoked automatically.

Fields

Field	Required	Description
`header`	No	Header.
`body.text`	No	Message text. Strongly recommended, so the user understands why you want to call.
`footer.text`	No	Footer text.
`action.name`	Yes	`call_permission_request`

Call permission request
{
  "interactive": {
    "type": "call_permission_request",
    "body": {
      "text": "Our support team would like to call you about your recent request. Do you allow us to call you on WhatsApp?"
    },
    "action": {
      "name": "call_permission_request"
    }
  }
}

You can send this message to a phone number or to a Business-scoped User ID, only to[].number changes.

Media carousel message

A media carousel shows 2–10 horizontally scrollable cards. Each card has an image or video header, optional body text and buttons.

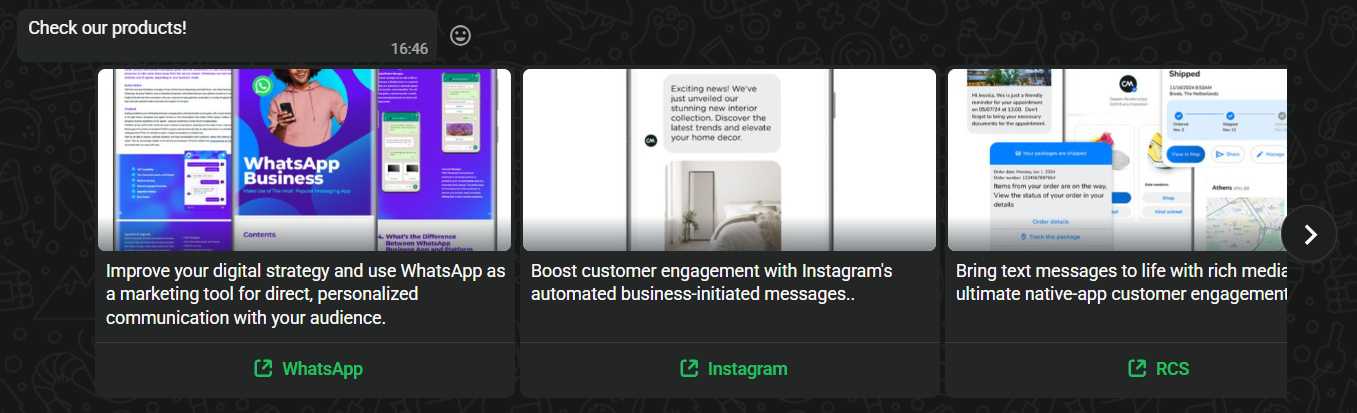

Example of interactive media carousel

Rules

The message must contain between 2 and 10 cards.
The message-level body.text is required. Message-level headers and footers are not supported.
Each card must have an image or video header. Other header types are not supported.
Card body text is optional.
Each card has either one CTA URL button or one or more quick-reply buttons. The button type and number of buttons must be the same on every card. For example, if one card has 2 quick-reply buttons, every card must have exactly 2.

Fields

Field	Required	Description
`body.text`	Yes	Message text, shown above the cards.
`action.cards[].card_index`	Yes	Position of the card, starting at `0`.
`action.cards[].type`	Yes	Card type, for example `cta_url`.
`action.cards[].header.type`	Yes	`image` or `video`.
`action.cards[].header.image.link`	Yes	Public URL of the image (or `header.video.link` for video).
`action.cards[].body.text`	No	Card text.
`action.cards[].action.name`	Yes	`cta_url` for a URL button.
`action.cards[].action.parameters.display_text`	Yes	Button label.
`action.cards[].action.parameters.url`	Yes	URL opened when the user taps the button.

Carousel with CTA URL buttons
{
  "interactive": {
    "type": "carousel",
    "body": {
      "text": "Check out our channels!"
    },
    "action": {
      "cards": [
        {
          "card_index": 0,
          "type": "cta_url",
          "header": {
            "type": "image",
            "image": {
              "link": "https://www.cm.com/cdn/web/en/download-whatsapp-business-guide-new.png"
            }
          },
          "body": {
            "text": "Use WhatsApp for direct, personalised communication with your audience."
          },
          "action": {
            "name": "cta_url",
            "parameters": {
              "display_text": "WhatsApp",
              "url": "https://www.cm.com/whatsapp/"
            }
          }
        },
        {
          "card_index": 1,
          "type": "cta_url",
          "header": {
            "type": "image",
            "image": {
              "link": "https://www.cm.com/cdn/web/en/instagram-newsletters-announcements.jpg"
            }
          },
          "body": {
            "text": "Boost customer engagement with Instagram's automated business-initiated messages."
          },
          "action": {
            "name": "cta_url",
            "parameters": {
              "display_text": "Instagram",
              "url": "https://www.cm.com/instagram-messaging/"
            }
          }
        },
        {
          "card_index": 2,
          "type": "cta_url",
          "header": {
            "type": "image",
            "image": {
              "link": "https://www.cm.com/cdn/web/en/rcs-features.png"
            }
          },
          "body": {
            "text": "Bring text messages to life with rich media."
          },
          "action": {
            "name": "cta_url",
            "parameters": {
              "display_text": "RCS",
              "url": "https://www.cm.com/rcs/"
            }
          }
        }
      ]
    }
  }
}

Message structure​

Header types​

Complete request​

List message​

Reply button message​

CTA URL button message​

Location request message​

Flows message​

Call permission request message​

Limits​

Fields​

Media carousel message​

Rules​

Fields​

Message structure

Header types

Complete request

List message

Reply button message

CTA URL button message

Location request message

Flows message

Call permission request message

Limits

Fields

Media carousel message

Rules

Fields
