Overall Flow Of Updating Job History & Filtering Data Explained By Flowcharts

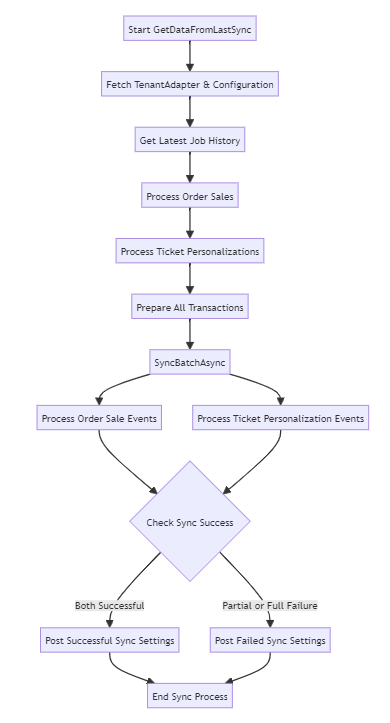

1. Paylogic Sync Process Flow-Chart

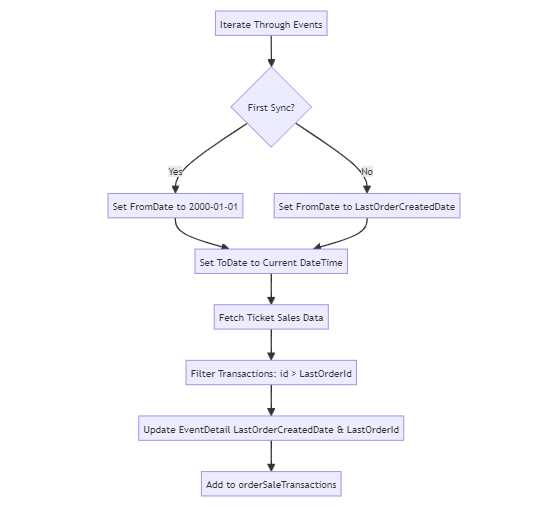

2. Process Order Sale Flowchart

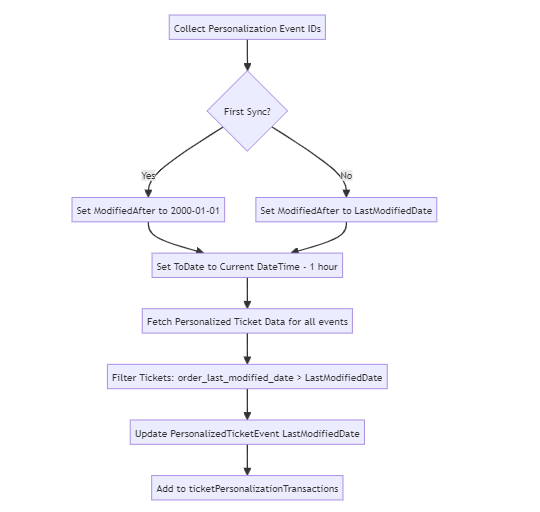

3. Process Ticket Personalization Flowchart

4. Post Successful Sync Flowchart

5. Post Fail Sync Flowchart : for post fail sync we just update the is Success flag to false in the above flowchart. is Success will be false only if wrong configuration is used by the customer. For example if the event id is wrong or the refresh token is wrong.
